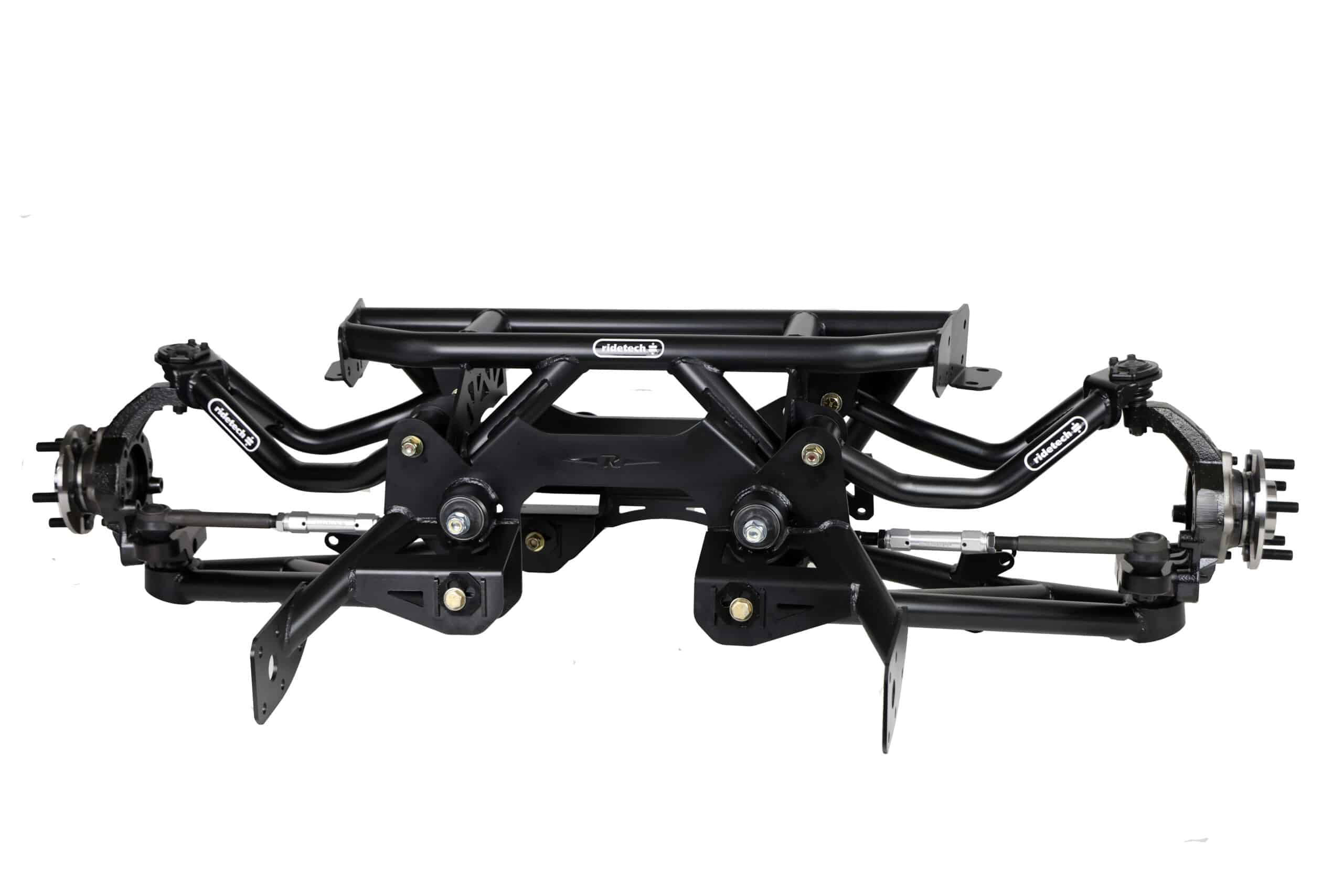

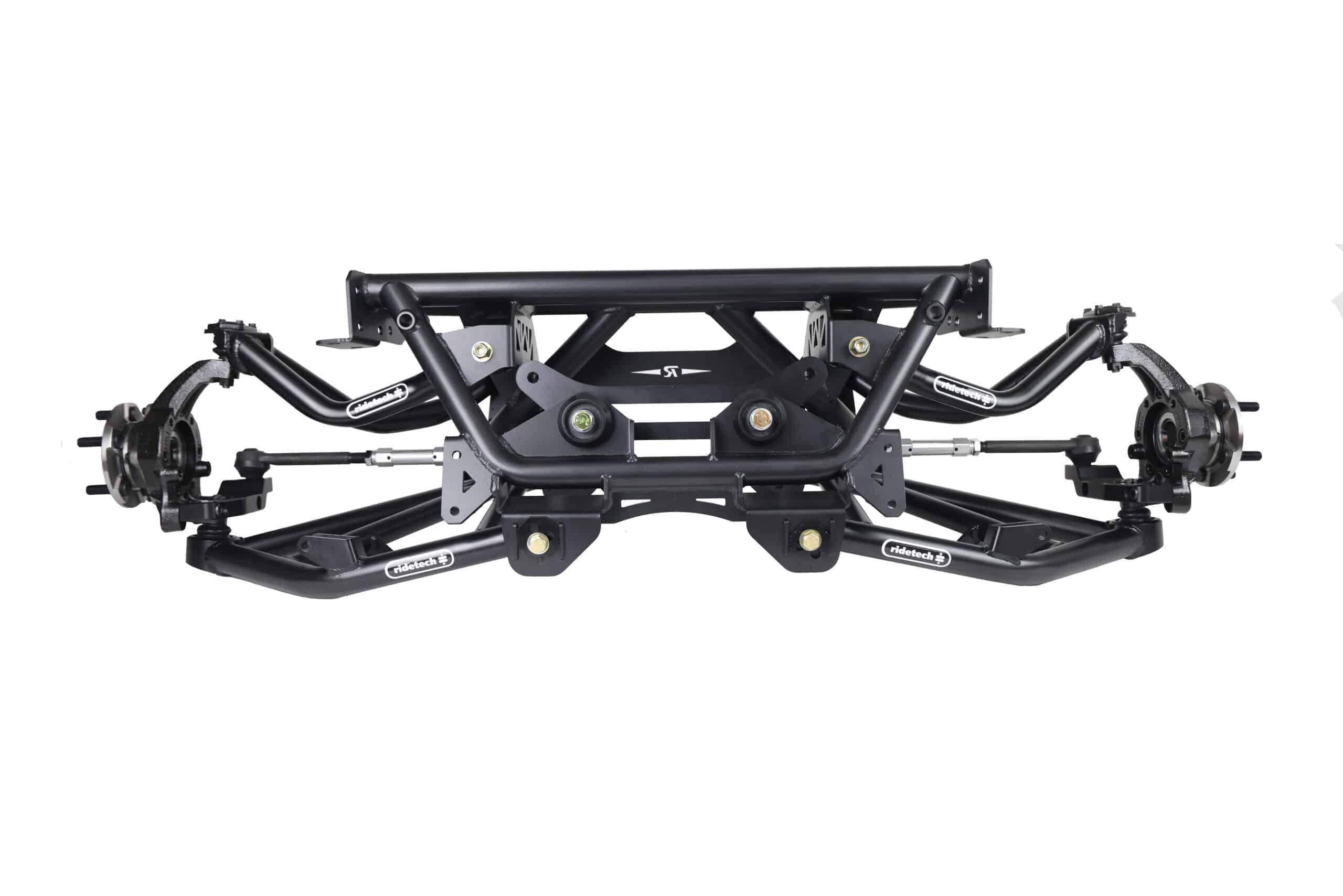

It’s no secret that independent rear suspensions are superior in almost every way over a stick axle. The biggest concerns are cost and ease of installation. This bolt-on Ridetech IRS Conversion is specifically designed for the 1979-1993 Fox Body Mustang and provides maximum performance, high strength and OE reliability utilizing 2015-2023 Mustang driveline/brake components. Pair this rear suspension system with the Ridetech SLA front kit to create the ultimate Fox Body suspension system.
FEATURES
- Made in the USA
- 100% Bolt-in design requires minimal modifications.
- Lowers stance approximately 2”.
- Reduced upsprung weight creates premium ride quality.
- Low roll center (5″), 1 degree of camber gain and zero bumpsteer inspires confident cornering.
- 50% anti-squat provides excellent traction.
- Delrin control arm bushings eliminate deflection. (No wheel hop!)
- Retains factory track width.
- Compatible with mini-tubs (cradle attaches to the inside of the frame rails).
- Works with Ridetech Coil-Overs or ShockWaves, sold separately.
Fitment Information
- Uses S550 (2015+) Mustang differential (not included). New units can be purchased from Ford Performance. Takeout units are also available.
- Uses shortened S550 (2015+) Mustang axles (not included). Standard strength and high horsepower axles will be available from Ridetech.
- Uses S550 Mustang hubs (not included).
- Allows direct bolt-on of either stock SN95 Cobra (1999-2004) or S550 (2015+) rear brakes. OE or aftermarket systems.
- Works with 99-04 Cobra cat-back exhaust.
- Requires shortened drive shaft and pinion flange to U-joint adapter.
Available Summer 2024!
